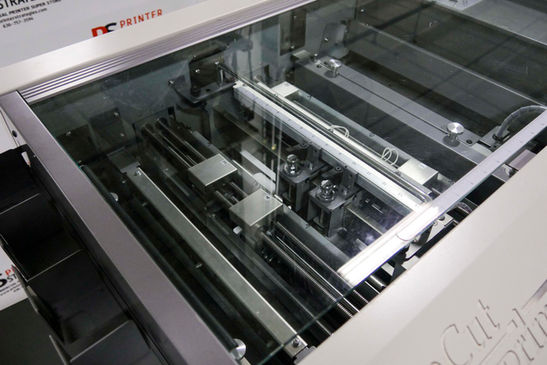

MBM Aerocut Prime
P
I
C
T
U
R
E
S
V
I
D
E
O
S
P
I
C
T
U
R
E
S
V
I
D
E
O
S
The Aerocut Prime is an ideal solution for finishing, especially for short-run digitally printed applications, such as business cards, post cards, invitations, greeting cards, leaflets, tickets and more. The complete package offers full versatility and convenience of the machine. The Prime has the capability to perforate stocks both across and along feeding direction by adding on an optional perforating unit.
Flex mode allows operators to cut multiple size cards from a page and add the desired number of creases on these; It enables designers and printers to create new aspects of applications. The Prime saves time and costs for any print shop, in-house printer, commercial printer, etc.
Channel creasing is equipped on every unit, allowing the machine to offer world-class creases on digitally printed stocks. Creasing pressure can be adjusted in 5 levels instantly by shifting the lever. The Aerocut Prime features 2 single blade slitters to trim top & bottom margins, and 2 double blade slitters for center gutters and precise accuracy. The durable blades cut stocks up to 400 gsm.
The air-suction top feeding system easily feeds coated, digital, gloss and other stocks precisely without damage. All-metal construction. Mounted on lockable, heavy-duty casters. Safety access cover—machine will not operate with cover in open position. The Prime Complete comes with a conveyor / stacker. It replaces the rear table for higher production output.
Specifications:
- Speed, sheets per minute - 24
- Sheet capacity, inches - 4
- Paper weight - 120-400 gsm
- Paper size, inches - 8.27 x 8.27 to 14.5 x 47
- Power supply - 100 - 120 V, 50/60 Hz
- Dimensions (D x W x H), inches - 30.3 x 57.6 x 41.13
- Shipping weight, pounds - 573
SN: 14081808
